Quality - Oriented, Offering Customer with Optimum Productivity and Profitability.
Product Details:
Payment & Shipping Terms:
|
| Product Name: | JC-400HI-FL | Plate Size: | 700*700mm |
|---|---|---|---|
| Clamp Force: | 400 Ton | Min Mould Thichness: | 200mm |
| Machine Dimensions: | 3400x2400x2600mm | Pressing Mode: | Hydraulic Pressing |
| Dimension: | L3600*W2600*H2700mm | Heater Power: | 24KW |
| Gross Weight: | 10.5Ton | ||
| High Light: | rubber moulding press machine,silicone bracelet maker machine |
||
Rubber And Silicone Shower Rose Mould 400 Ton Horizontal Hydraulic Rubber Injection Machine For Bath
what's Hydraulic system?
The role of hydraulic transmission system is to achieve injection molding machine according to the process of the various actions required to provide power and meet the various parts of the injection molding machine pressure, speed, temperature and other requirements. It is mainly composed of hydraulic components and hydraulic auxiliary components, which pump and motor injection molding machine is the power source. Various valves control the oil pressure and flow to meet the various requirements of the injection molding process.
Main Applications:
1. Oil seal type rubber, rubber key, rubber for automobiles, ordinary inductrial rubber, medical rubber, trademark rubber, diamond cutters, national defance inductry, rubber toys, melamine, resin forming, plate work, etc.
2. The rubber injection machine is used to produce auto spare parts,industral spare parts,electric appliances insulated spare parts,sealing washer,antivibration pad,toy and bodybuilding rubber parts,etc.
3. It has short production time,good injection molding quality,stable physicome chanical character and precister and precise dimension.It is especially good for producing rubber products of complicated shape,thick wall or with embeddeb parts.
Technical Parameters of 400 Ton
|
||||||||||||||||||||||||||||||||||||||||||||||||
The other parameter:
| Model | Unit | 550HI-FL | 600HI-FL | 800HI-FL | 1000HI-FL |
| Clamping Force | Ton | 550 | 600 | 800 | 1000 |
| Injection Capacity | cc | 10000(12000) | 6000 | 8000 | 10000 |
| Injection pressure | kgf/cm² | 2000 | 2000 | 2000 | 2000 |
| Operate table size | mm | 700*1500 | 850*850 | 1000*1000 | 1200*1200 |
| Min. Mold Thickness | mm | 510 | 200 | 250 | 250 |
| Plunger stroke | mm | 700 | 500 | 500 | 500 |
| Distance of Thermo-plate | mm | 960 | 700 | 750 | 750 |
| Distance of Tie bar | mm | 820*640 | 970*500 | 1240*590 | 1340*800 |
| Die sinking type | 2RT-3RT-4RT-Upper ejector-Bottom ejector | ||||
| Max. Operating Pressure | Mpa | 20 | 20 | 20 | 20 |
| Motor Power | hp | 30/7.5(22kw/5.5kw) | 20(15kw) | 20(15kw) | 25(18.5kw) |
| Heater Power | Kw | 45 | 29.75 | 35 | 42 |
| Total Power | Kw | 80 | 48.75 | 54 | 64.5 |
| Gross weight | Ton | 25 | 14.5 | 18.5 | 22 |
| Dimension | mm | L5200*W2600*H3500 | L3800*W2800*H2800 | L4000*W3050*H2900 | L4150*W3250*H3200 |
Product Show:

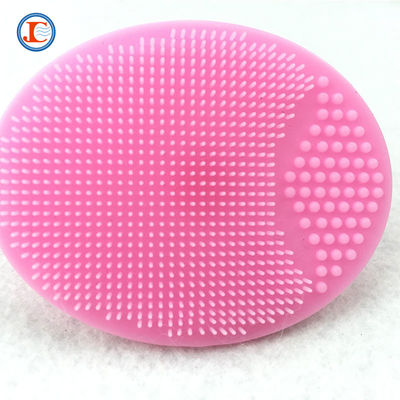

Finished product:
