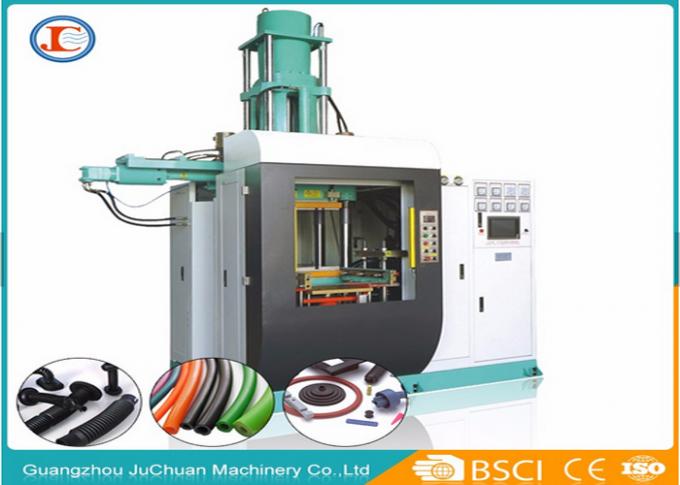

OEM Vertical 300 Ton Rubber Stopper Injection Machine Large Production

OEM Vertical 300 Ton Rubber Stopper Injection Machine Large Production
OEM Vertical 300 Ton Rubber Stopper Injection Machine Large Production

Large Image :  OEM Vertical 300 Ton Rubber Stopper Injection Machine Large Production

Product Details:

Place of Origin: China
Brand Name: Juchuan
Certification: LFGB CE
Model Number: JC-300VI-AO

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: N/A
Delivery Time: 45 days
Supply Ability: 500sets per year
Detailed Product Description
Apply Products: Rubber Stopper Pressing Type: Hydraulic Pressing
Mold Openning Stroke: 3RT Clamp Force: 300Ton
Max Pressure: 20MPa Control System: PLC
High Light:

hydraulic oil press machine

,

silicone bracelet maker machine

Large Production OEM Vertical 300 ton Rubber Stopper Injection Machine



Own Patented "all-in-out" Technology:

  1. Visible Feeding System:
  • Avoid the traditional techniques which cannot know about the situations like temperature/hardness/ Plasticizing before vulcanizing,
  • Efficiently get control of the raw material Plasticizing status, can make adjustment in time.
  1. Excellent Plasticizing Effects:
  • Excellent Plasticizing effects, reduce the waste rubber material, avoid blocking the cylinder, save much more raw material when plasticizing.
  • Easy to switch the different colors of raw material,easy for cleaning.
  1. High Temperature Ranges:
  • Simple structure, Plasticizing temperature between 90 ℃ and 100 ℃, ensure good Plasticizing effects.
  • Good Plasticizing effects can ensure a good injection products.
  1. Save Raw Rubber Material:
  • Can handle with the raw rubber material as hardness as 85°.
  • Improve coefficient of utilization of raw material.
  1. all material in, and all out:
  • ​All-in-out structure, sprueless injection without material loss controlable injecting material temperature
  • Excellent for high precision molding parts

Specific Charateristics:

  1. Suitable for automotive and electronic rubber parts, high / cold temprature precision rubber parts, especially NBR products.

  2. All-in-out structure, sprueless injection without material loss controlable injecting material temperature.

  3. Excellent for high precision molding part

  4. 5-10 times better accuracy than conventional injection machine the measuring precision of 1000cc injection volume is up to ±0.1g

  5. Anti-collision molding system prevent mold damage occurring from misalignment(patented)

  6. Servo-controlled system up to 40% energy saving

  7. Proportional backpressure controlling characteristic

Services Conception:

  •  Installation and debugging:  Our engineers will teach you about the installation and debugging for free.

  • Technology training : Our company will offer technology training for your operation.

  • After-sales service: We will supply the free repairment on this machine for one year, but will supply the maintenance lifetime. ( the service is only for natural damage)

Rubber Stopper Injection Molding Procedure:


  1. matching: according to the proportions of raw materials, auxiliaries and proportions, the scales should be weighed and matched process.
  2. Mixing: mixing all kinds of additives such as vulcanizing agent, vulcanizing promoter, colorant and halogenated butyl rubber and filling agent. Under the action of machinery, the adhesive is cut and refined to make a uniform quality compound.
  3. Preforming: according to the requirements of different vulcanizing equipment and moulds, the mixing rubber is pressed through the open mill or extruder.The process of the calender to be rolled into a semi-finished product.
  4. Vulcanization: at a certain time, temperature and pressure, the rubber mixture is made of linear chain rubber.Glue molecular chain. The vulcanization process is a process of chemical crosslinking of macromolecular chains of rubber.
  5. Punching and cutting: that is, trimming the edges and removing the redundant edges of the rubber stoppers by mechanical means so as to achieve the specifications of the product size requirement.
  6. Cleaning and silicification: remove the scraps from the rubber stopper through the sifter, remove the static electricity, add the bottle stopper into the washing machine, and pour pure water or injection into it.The cleaning, washing, overflow, silicification, drying, sterilization (pure steam), cooling and other links have reached the standard requirements after cleaning, rinsing, overflow, silicification, drying, sterilization (pure steam) and cooling. This procedure is called cleaning silicification program. Because of the direct contact between the rubber plug and the drug, it is very important to control the particles on the surface of the rubber plug. Moreover, the surface of the rubber plug must be silicified in the production and transportation environment, the electrostatic adsorption of the rubber plug, the edge punching and so on. In particular, acid and alkali treatment is carried out in order to release the surface of the rubber plug and the internal material as far as possible, so that the visible and precipitates are minimized - the effect of silicification.
  7. Packing:
  • Inner packaging - often use clean, non static polyethylene packaging film packaging, generally divided into inner and outer layer, and vacuum when necessary. The innermost layer (first level) is completed in the 100 level clean area, and the outer layer (second levels) is completed in the clean area.Pass through the transmission window to the outer packing area. It
  • outer packing, carton packing and sealing tape sealing are completed in the 100 thousand level clean area.

Main Technical Parameters:


ModelUnit200VI-AO300VI-AO400VI-AO600VI-AO800VI-AO1000VI-AO
Clamping ForceTon2003004006008001000
Injection Capacitycc2000300040006000800010000
Injection pressurekgf/cm²180018001800180018001800
Operation table sizemm550*560700*700700*700850*8501000*10001200*1200
Min. Mold Thicknessmm100100100100150150
Plunger strokemm400400400500500500
Distance of Thermo-platemm500~600500~600500~600600~700650~800650~800
Distance of Tie barmm640*310820*395820*395970*5001140*6001340*800
Die sinking type2RT-3RT-4RT-Upper Mold-Lower Mold

Max. Operating
Pressure

Mpa202020202020
Motor Powerhp151515202025
Electric Heating PowerKw15.3242429.753542
Total PowerKw30.3393948.755464.5
Gross weightTon7.591014.217.521

Dimension
(L*W*H)

mm

2600*2000
*4000

2750*2265
*4200

2750*2265
*4200

3200*2500
*4350

L3450*W2750
*H4500

3750*3050
*5000


OEM Vertical 300 Ton Rubber Stopper Injection Machine Large Production 0OEM Vertical 300 Ton Rubber Stopper Injection Machine Large Production 1OEM Vertical 300 Ton Rubber Stopper Injection Machine Large Production 2
