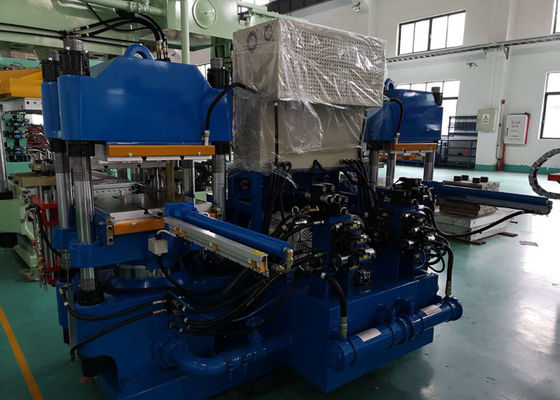

Silicone Vulcanization Molding Machine For Cleaning Brush Scrubber Eco - Friendly

Silicone Vulcanization Molding Machine For Cleaning Brush Scrubber Eco - Friendly
Silicone Vulcanization Molding Machine For Cleaning Brush Scrubber Eco - Friendly Silicone Vulcanization Molding Machine For Cleaning Brush Scrubber Eco - Friendly Silicone Vulcanization Molding Machine For Cleaning Brush Scrubber Eco - Friendly Silicone Vulcanization Molding Machine For Cleaning Brush Scrubber Eco - Friendly

Large Image :  Silicone Vulcanization Molding Machine For Cleaning Brush Scrubber Eco - Friendly

Product Details:

Place of Origin: China
Brand Name: Juchuan
Certification: SGS CE ISO9001
Model Number: JC-300HF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: N/A
Delivery Time: 45 days
Supply Ability: 500 sets one year
Detailed Product Description
Clamp Force: 300 Ton Plate Size: 700x800mm
Plunger Stroke: 300mm Heating Plates Distance: 300-400mm
Tie Bar Distance: 785x380mm Mold Opening Stroke: 2RT
High Light:

hydraulic vulcanizing machine


rubber vulcanization molding machine

Reusable Silicone Eco-Friendly Cleaning Brush Scrubber Gloves Molding Machine



PLC Control System Features:

Because the computer control system can guarantee the pressure of the water supply very reliably, the original two pumps are changed to one water pump for variable frequency operation. The electricity cost of a pump that is only stopped for one year can save hundreds of thousands of dollars. Therefore, the use of automatic control system has a significant effect of saving electricity.

After the steam condensate discharge control system of the vulcanizer cancels the steam trap, the fixed temperature is used to control the discharge, and the automatic discharge of the sulfurized condensed water is realized, which greatly reduces the steam consumption. The cost saved in one year will be nearly one million RMB.

Since the damage caused by human error can not be ruled out, if the entire system uses only one central controller, even the reliability of the system can be relatively high. If the controller has problems, the impact on production is very huge. Therefore, it can be solved by setting the standby controller and decentralized control.

The former is to set up a standby controller for the system. When the main controller has a problem, the standby controller can immediately take over the work, and will not affect the normal production work due to the controller failure. Since it is the same configuration as the main controller, the price will not be too high.

In the latter, a separate controller is provided for each vulcanizer. All signal acquisition and process control are controlled by a separate controller, and then connected by the industrial network. The control system of each vulcanizer is independently controlled, and the reliability is very high, which will definitely not affect the work of other equipment. But the cost of the program is also very high.


Vulcanizing Machine Daily Maintenance Keypoints:

Regardless of any equipment, if the operation is improperly used, not maintained in time, or the environment in which the equipment is located is too poor, the service life of the equipment will be shortened. Zhengzhou Junan Machinery believes that the following points should be noted in the daily maintenance of the vulcanizer:

The flat vulcanizing machine should be operated or stored in a dry and ventilated environment. Excessively wet plants and warehouses will cause the electrical wiring of the vulcanizer to be wet and string.

In the same way, in the rain and snow weather, the vulcanizer cannot be used outdoors. Rain and snow will cause the electric control box and heating plate of the vulcanizer to enter the water, resulting in the vulcanization process not meeting the standards or equipment damage.

If the working environment of the vulcanizer cannot avoid moisture and water, it is necessary to put a mat on the ground when disassembling and handling the equipment. In case the vulcanizing machine is in direct contact with water.

In the process of using the vulcanizer, if the heating plate is in the water due to improper operation, it is necessary to contact the manufacturer for repair. In a state where the situation is relatively urgent, it is best to carry out emergency repair work. The upper cover of the heating plate is opened by the operator to pour out the water. Set the electric control box operation mode to manual, warm up to one hundred degrees Celsius, and keep the temperature constant for one hour. After the damp line is dried, the belt is glued. At the same time of emergency treatment, you must not forget to arrange personnel and manufacturers to contact.

If the vulcanizer is not used for a long time, the heating plate needs to be turned on every half month, and the temperature is controlled at one hundred degrees Celsius for half an hour.

At the end of each work of the vulcanizer, the water in the water pressure plate needs to be cleaned. Especially in the cold winter, if the water is not cleaned, the rubber of the water pressure plate will age prematurely, and the service life of the water pressure plate will also decrease.

The vulcanizer discharge water needs to be carried out after the vulcanization and insulation work is completed, and the vulcanizer has not been dismantled. If the water is released after the re-vulcanization machine is disassembled, the water in the water pressure plate may not be completely discharged.



Machine Technical parameter:

Model Unit 200HF 300HF 400HF 500HF 1200HF
Clamping Force Ton 200 300 400 500 1200
Operation table size mm 550*560 700*800 850*850 1000*1000 1600*2200
Plunger stroke mm 250 300 300 350 350
Distance of mm 250-350 300~400 300~400 350~450 350~550
Distance of Tie bar mm 650*320 785*380 940*450 1105*475 6 posts
Die sinking type Track-Suspension-2RT-3RT-4RT optional  optional  optional  optional  optional
Max Operating Mpa 20 20 20 20 20
Motor Power hp 10*2(7.5kw*2) 10*2(7.5kw*2) 15*2(11kw*2) 15(11kw) 25(18.5kw)
Electric Heating Kw 13.5*2 24*2 26.4*2 36 126
Total Power Kw 42 63 74.8 47 144.5
Gross weight Ton 7.8 15 17 13.5 28.5
Dimension(L*W*H) mm 2930*2350*2050 3360*2970*2250 3660*3050*2350 1460*3600*2380 2350*5400*2950


Reference Images Showcase:
Silicone Vulcanization Molding Machine For Cleaning Brush Scrubber Eco - Friendly 0Silicone Vulcanization Molding Machine For Cleaning Brush Scrubber Eco - Friendly 1
