Quality - Oriented, Offering Customer with Optimum Productivity and Profitability.
Product Details:
Payment & Shipping Terms:
|
| Clamp Force: | 800 Ton | Injection Pressure: | 1800kgf/cm² |
|---|---|---|---|
| Motor Capacity: | 15KW | Platen Size: | 1000*1000mm |
| Min Mold Thickness: | 150mm | Plunger Stroke: | 500mm |
| Dimension: | L3450*W2750*H4500mm | Die Sinking Type: | 2RT/ 3RT/ 4RT |
| High Light: | silicone injection machine,silicone mould making machine |
||
Servo-Motor 800 Ton PLC Control Injection Molding Machine Silicone Injection Machine For Car Accessories
Our Progressive Technology All In Out Machine:
1. Visible material handling system:
According to the temperature before vulcanization / hardness / plasticization, can effectively control the plasticization of raw materials, and timely adjustment.
2. Plasticizing effect:
Plasticizing effect is very good, effectively reduce the rubber waste, to avoid blocking the cylinder, easy to clean. Replacing different colors of raw materials is very convenient.
3. High temperature range:
Simple structure, plasticizing temperature between 90 ℃ to 100 ℃, to ensure good plasticizing effect.
4. Save raw rubber material:
The same as the raw rubber material processing hardness of 85 °, can improve the raw materia utilization factor.
5. All-in-out structure, sprueless injection without material lass controlable injecting material temperature.
6. Stable working performance, can normally runing for over 5 years without any mechinery problems
7. Low working noises, can bring a quiet working environment
Application:
1. Suitable for multilateral, polygonal and other complicated shape products；
2. Particularly for cooking utensil, sporting goods, medical supplies, auto accessories, high and low voltage electricity, electronic accessory and other high precision applications.
800Ton Machine Paremeter :
| Model | Unit | 800VI-AO |
| Clamping Force | Ton | 800 |
| Injection Capacity | cc | 8000 |
| Injection pressure | kgf/cm² | 1800 |
| Operation table size | mm | 1000*1000 |
| Min. Mold Thickness | mm | 150 |
| Plunger stroke | mm | 500 |
| Distance of Thermo-plate | mm | 650～800 |
| Distance of Tie bar | mm | 1140*600 |
| Die sinking type | 2RT/ 3RT/ 4RT-Upper Ejector-Bottom Ejector | |
| Max. Operating Pressure | Mpa | 20 |
| Motor Power | hp | 20 |
| Electric Heating Power | Kw | 35 |
| Total Power | Kw | 54 |
| Gross weight | Ton | 17.5 |
| Dimension | mm | L3450*W2750*H4500 |
Other capacity parameter:
| Model | Unit | 300VI-AO | 400VI-AO | 600VI-AO |
| Clamping Force | Ton | 300 | 400 | 600 |
| Injection Capacity | cc | 3000 | 4000 | 6000 |
| Injection pressure | kgf/cm² | 1800 | 1800 | 1800 |
| Operation table size | mm | 700*700 | 700*700 | 850*850 |
| Min. Mold Thickness | mm | 100 | 100 | 100 |
| Plunger stroke | mm | 400 | 400 | 500 |
| Distance of Thermo-plate | mm | 500～600 | 500～600 | 600～700 |
| Distance of Tie bar | mm | 820*395 | 820*395 | 970*500 |
| Die sinking type | 2RT/ 3RT/ 4RT-Upper Ejector-Bottom Ejector | |||
| Max. Operating Pressure | Mpa | 20 | 20 | 20 |
| Motor Power | hp | 15 | 15 | 20 |
| Electric Heating Power | Kw | 24 | 24 | 29.75 |
| Total Power | Kw | 39 | 39 | 48.75 |
| Gross weight | Ton | 9 | 10 | 14.2 |
| Dimension | mm | L2750*W2265*H4200 | L2750*W2265*H4200 | L3200*W2500*H4350 |

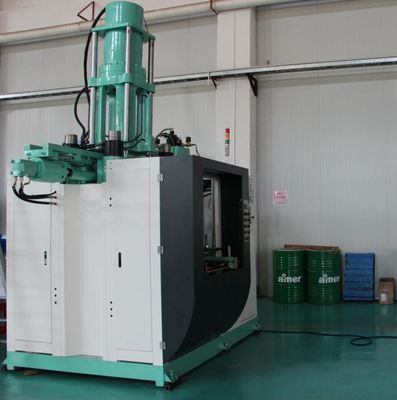

Product Show:
