Multi - Pillar Plate Vacuum Compression Molding Machine 49KW 500 Ton Low Power Consumption

Multi - Pillar Plate Vacuum Compression Molding Machine 49KW 500 Ton Low Power Consumption
Multi - Pillar Plate Vacuum Compression Molding Machine 49KW 500 Ton Low Power Consumption Multi - Pillar Plate Vacuum Compression Molding Machine 49KW 500 Ton Low Power Consumption Multi - Pillar Plate Vacuum Compression Molding Machine 49KW 500 Ton Low Power Consumption Multi - Pillar Plate Vacuum Compression Molding Machine 49KW 500 Ton Low Power Consumption

Large Image :  Multi - Pillar Plate Vacuum Compression Molding Machine 49KW 500 Ton Low Power Consumption

Product Details:

Place of Origin: Guangzhou, China
Brand Name: Juchuan
Certification: SGS CE
Model Number: JC-500VF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: N/A
Delivery Time: 45 days
Supply Ability: 500 sets one year
Contact Now
Detailed Product Description
Clamp Force1200 T: 500Ton Plate Size: 950*950mm
Plunger Stroke: 350mm Heating Plate Distance: 350mm
Max Operation Pressure: 20MPA Gross Weight: 14.5 Ton
Motor Capacity: 11KW Total Power: 49KW
Vacuum Pump Power: 4KW
High Light:

rubber compression moulding machine

,

rubber compression molding machine

3.2M High 500 Ton Calmp Force Silicone Chocolate Mould Making Vacuumizer Mould Injection Machine

Main Features:

  • This type of machine is multi-functional,  suitable to be used for top opening double or triple mold plates.
  • High force employs dual pressure and each oil system is designed separately. consistent, quiet and low frequency of malfunctions.
  • Two shafts can be operated simultaneous.
  • Slow moving speed is available for alignment more safe and more accurate.
  • Molds can be precisely positioned. A 100% safety design for positioning is available to prevent molds from damage.
  • The speed to open and close the mold is adjustable. It is very accurate and reliable.
  • The 3RT surpasses the traditional top opening mold that can be used for the tripleor four mold plates with the design of opening mold and pushing out the mold in between.
  • The opening mold can be adjusted by the software with separate opening, separate pushing out the mold in between, continuous opening and continuous pushing out the mold in between.
  •

Specific Characteristic:

  1. Able to assemble/install separate Ejection mechanism that suitable for bigger size molding part
  2. Efficient production of rubber part for railway, mining, shipbuilding industries
  3. Multi-pillar plate vulcanizing machine.
  4. Anti-collision Molding System prevent mold damage occurring from misalignment (Patented).



 500Ton parameter:

Model Unit 500VF
Clamping Force Ton 500
Upper Platen Size mm 950*950
Lower Platen Size mm 1000*1000
Plunger stroke mm 350
Distance of Thermo-plate mm 350
Distance of Tie bar mm 1105*475
Die sinking type 2RT-3RT-4RT-Track
Max Operating Pressure Mpa 20
Motor Power hp 15
Electric Heating Power Kw 36
Vacuum Pump Power Kw 4
Total Power Kw 49
Gross weight Ton 14.5
Dimension mm L1460*W3600*H3150





The other capacity Parameters:

Model Unit 200VF 250VF 300VF 400VF
Clamping Force Ton 200 250 300 400
Upper Platen Size mm 510*510 600*600 680*680 800*800
Lower Platen Size mm 550*560 650*600 700*800 850*850
Plunger stroke mm 250 250 300 350
Distance of Thermo-plate mm 250 250 300 350
Distance of Tie bar mm 640*310 745*310 785*380 940*450
Die sinking type 2RT-3RT-4RT-Track
Max Operating Pressure Mpa 20 20 20 20
Motor Power hp 10*2 10*2 10*2 15*2
Electric Heating Power Kw 13.5*2 15.3*2 24*2 26.4*2
Vacuum Pump Power Kw 3 3*2 3*2 3*2
Total Power Kw 45 51.6 69 84.8
Gross weight Ton 7.8 11 15.45 18
Dimension mm L2930*W2500*H2350 L3190*W2930*H2495 L3360*W2970*H2850 L3650*W3050*H2900


Product show:

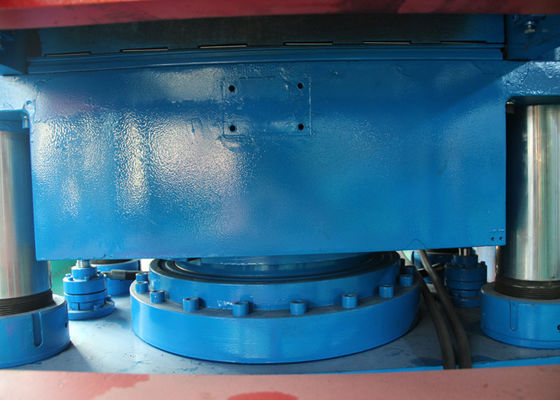

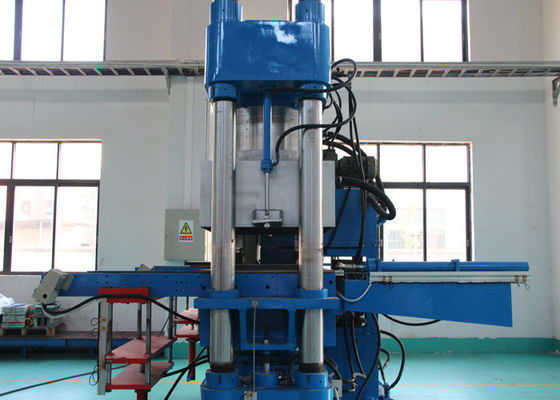

Multi - Pillar Plate Vacuum Compression Molding Machine 49KW 500 Ton Low Power Consumption 0

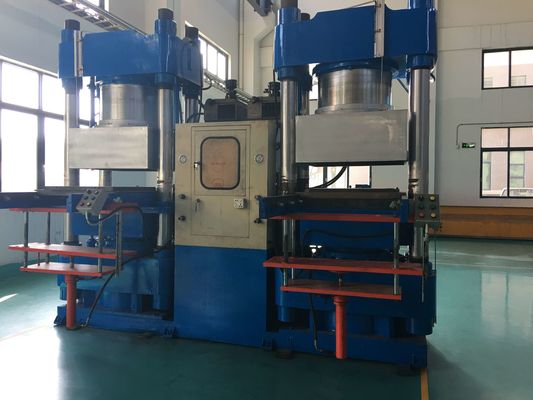

Multi - Pillar Plate Vacuum Compression Molding Machine 49KW 500 Ton Low Power Consumption 1
