| Product Name: | JC-200VI-FL | Clamp Force: | 200 Ton |
|---|---|---|---|
| Plate Size: | 550x560mm | Plunger Stroke: | 400mm |
| Heating Plates Distance: | 500-600mm | Machine Dimension: | 2600x2000x4000mm |
| Motor Capacity: | 11KW | ||
| High Light: | silicone injection machine,silicone molding machine |
||
200 Ton Synthetic Rubber And Silicone Oil Cap Making Equipment Silicone Mold Injection Machine For Car Industry
Machine characteristic:
1. Curing and injection speed system: adjustable time and speed to ensure injection precision and unique multiple stage injection function.
2. Company patent: anti-collision system, the protection of the mold caused by dislocation caused damage.
3. Unique multi-function moulding design, there are three different kinds of mold closing pressure and speed.
4. Suitable for all kinds of complicated rubber parts, automobile parts and solid silica gel products.
5. Precise hydraulic system: the extrusion cylinder and plunger are checked neatly, less friction, prevent material flow, and ensure the injection process is stable.
6. The injection area is larger than the traditional machine and the maintenance is easier.
7. Four-cylinder straight lock plate clamping mechanism.
Brand Name of Machine Part:
1. Casting( Ductile Cast Iron): high quality QT 500-07 ductile iron castings, five year warranty.
2. Oil Pump: Japan Yuken oil reaserch brand, good quality and durable
3. Directional Valve: Ensure the control precision and flexibility, good stability
4. PLC: Japan Mitsubishi PLC, it can achieve stability, durability, long life, fast operation
5. Motor: Dual motor drive independent of the oil, do not interfere with each other.it can be operated
6. Separately, which makes more stale and more energy efficient
7. Panel master HMI: Advance Taiwan Panel master brand, high sensitivity and durability
Working steps:
1. Firstly Close the mold and load the mold
2. After loading the mold, the main cylinder goes up to the predetermined position. Lower the vacuum hood. Suck out the air unit a state of vacuum is reached. The main cylinder goes up. Increase the pressure to expel bubbles out.
3. After bubbles are expelled completely, the state of vacuum exists no more. Lift the vacuum mask and curing.
4. Lower the main cylinder and unload the mold. Open the mold.
5. Take out the final product and put new material in.
Application:
1. Automotive Rubber Parts, Electronic Rubber Parts;
2. Body Rubber Parts, Rubber Boots for Cables;
3. Hydraulic Seals,Engine Mountings, Anti Vibration Mountings;
4. Cake silicone pads, pat feeding pads;
5. Silicone complicated parts.
Main Paremeter:
| Model | Unit | 50VI-FL | 100VI-FL | 200VI-FL | 300VI-FL | 400VI-FL | 600VI-FL |
| Clamping Force | Ton | 50 | 100 | 200 | 300 | 400 | 600 |
| Injection Capacity | cc | 500 | 1000 | 2000 | 3000 | 4000 | 6000 |
| Injection pressure | kgf/cm² | 200 | 200 | 200 | 200 | 200 | 200 |
| Operate table size | mm | 300*300 | 400*400 | 550*560 | 700*700 | 700*700 | 850*850 |
| Min. Mold Thickness | mm | 50 | 50 | 100 | 100 | 100 | 100 |
| Plunger stroke | mm | 300 | 350 | 400 | 400 | 400 | 500 |
| Distance of Thermo-plate | mm | 350~450 | 400~500 | 500~600 | 500~600 | 500~600 | 600~700 |
| Distance of Tie bar | mm | 400*140 | 515*230 | 640*310 | 820*395 | 820*395 | 970*500 |
| Die sinking type | 2RT-3RT-4RT-Upper ejector-Bottom ejector | ||||||
| Max. Operating Pressure | Mpa | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 7.5(5.5kw) | 10(7.5kw) | 15(11kw) | 15(11kw) | 15(11kw) | 20(15kw) |
| Heater Power | Kw | 8.4 | 10 | 15.3 | 24 | 24 | 29.75 |
| Total Power | Kw | 16.9 | 20.5 | 30.3 | 39 | 39 | 48.75 |
| Gross weight | Ton | 5 | 6.4 | 7.8 | 9.6 | 10 | 14.2 |
| Dimension(L*W*H) | mm |
2000*1500 *2800 |
2400*1650 *3200 |
2600*2000 *4000 |
2750*2265 *4200 |
2750*2265 *4200 |
3200*2500 *4350 |
Product Show:

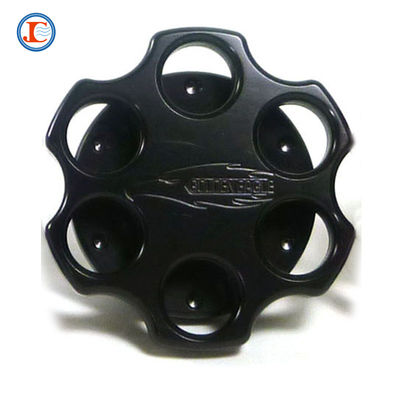

Finished Product:
