Product Details:
Payment & Shipping Terms:
|
| Clamp Force: | 200 Ton | Material Hardness: | Under 80 Share A |
|---|---|---|---|
| Power Supply: | AC 380V 50HZ | Applications: | Hollow Sleeve Insulator, Rod Insulator |
| Original: | Guangzhou China | Injection Volume: | 2000cc |
| Machine Size: | 3400*2400*2600mm | Color: | Grey |
| High Light: | automatic rubber moulding machine,rubber transfer moulding machine |
||
High Effeciency Tensile Strength 200 Ton 2 RT Automatic Alarm Function Rubber Injection Machine
What is working principle of Injection machine?
The working principle of the silicone injection molding machine is similar to the syringe used for injection. It is the process of injecting plasticized plastic in the melting state (viscid flow state) into the closed mold cavity with the help of the screw (or plunger) thrust and obtaining the product after curing and fining.
How does an injection machine work?
Silicone injection molding machine is a cyclic process, each cycle mainly includes: quantitative feeding -- melt plasticization -- pressure injection -- mold filling and cooling -- mold opening and taking. Take out the plastic parts and then close the mold again for the next cycle.
Choose the right molding machine according to different plastic products. A good molding products, can achieve the effect of half work half. Improving the quality of products also improves the production efficiency, and recently improves the production capacity, that is to say, can create more profits for the enterprise. Therefore, the choice of a good plastic molding machine equipment is crucial.
The injection molding machine converts the plastic granular material into a final plastic part by circulating, injecting, holding, cooling and the like.
| Model | Unit | 300HI-FL | 400HI-FL | 550HI-FL | 600HI-FL | 800HI-FL | 1000HI-FL |
| Clamping Force | Ton | 300 | 400 | 550 | 600 | 800 | 1000 |
| Injection Capacity | cc | 3000 | 4000 | 10000(12000) | 6000 | 8000 | 10000 |
| Injection pressure | kgf/cm² | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Operate table size | mm | 700*700 | 700*700 | 700*1500 | 850*850 | 1000*1000 | 1200*1200 |
| Min. Mold Thickness | mm | 200 | 200 | 510 | 200 | 250 | 250 |
| Plunger stroke | mm | 400 | 400 | 700 | 500 | 500 | 500 |
| Distance of Thermo-plate | mm | 600 | 600 | 960 | 700 | 750 | 750 |
| Distance of Tie bar | mm | 820*395 | 820*395 | 820*640 | 970*500 | 1240*590 | 1340*800 |
| Die sinking type | 2RT-3RT-4RT-Upper ejector-Bottom ejector | ||||||
| Max. Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 15(11kw) | 15(11kw) | 30/7.5 (22kw/5.5kw) |
20(15kw) | 20(15kw) | 25(18.5kw) |
| Heater Power | Kw | 24 | 24 | 45 | 29.75 | 35 | 42 |
| Total Power | Kw | 39 | 39 | 80 | 48.75 | 54 | 64.5 |
| Gross weight | Ton | 9.5 | 10.5 | 25 | 14.5 | 18.5 | 22 |
| Dimension(L*W*H) | mm | 3500*2600 *2700 |
3600*2600 *2700 |
5200*2600 *3500 |
3800*2800 *2800 |
4000*3050 *2900 |
4150*3250 *3200 |

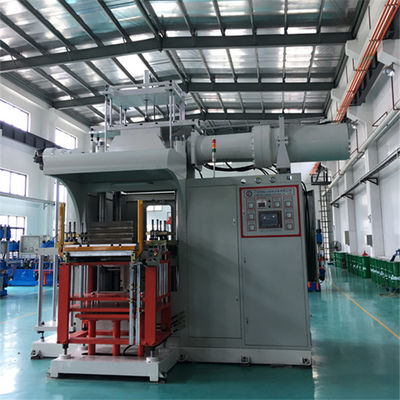

Machine Reference Images:
