Dual Stations 4 Columns Vacuum Pump Vulcanizing Machine For Silicone Rubber Parts

300 Ton Dual Stations 4 Columns Vacuum Pump Vulcanizing Machine For Silicone Rubber Parts

Vacuum Compression Molding Machine Operation Principles:

1. The operator who uses the solenoid valve to operate the manipulator must not tamper with the solenoid valve. When a fault occurs, it must be checked by the electrical and instrument personnel. Before the repair, the power must be cut off.
2. When starting the pull-out machine and the splint, first ring the bell, call the number, contact, do not get a reply, can not start. Do not put your hand into the splint during operation. Non-native personnel, do not arbitrarily splint or press the button. When the front and rear pull-out machines are started, the operator is 0.5 meters away from the roller.
3. When changing the horn, it is necessary to be stable and accurate. Do not use excessive force. Before changing the horn, you must inform the people around the pot to flash off to prevent injury. When the dome is ironed, it must be carried out after the hot plate and the upper hot plate are completely detached. After the top iron is completely finished, the iron plate can be put down.
4. When the pot is turned over, the hand is strictly forbidden to extend into the pot. When the pot is placed, the upper and lower hot plates are within 10 cm. It is forbidden to reach into the hot plate. If problems are found, stop the treatment.
5. When you take the iron rod for the finished product, you should hold it firmly and get it. When walking, pay attention to underground obstacles, and pay attention to avoiding injury to your hands and feet.
6. When starting the packaging machine, check before and after to prevent injury. When leading the lead, the two must be 0.5 meters away from the roller. Cooperate with each other, after driving the car, then drive.
7. When hanging the finished product, first check whether the wire rope is damaged. When lifting, you must first send a signal to the bottom of the cargo, and you are not allowed to stand. When lifting a semi-finished product, the wire rope must be hung in the groove of the take-up roll.
8. When hoisting the semi-finished product on the guide frame, the two persons must operate in the direction of the gap on the two sides of the guide frame. After the release, the card sleeve is blocked.
9. When using the electric drill or the pot cleaning machine, it is necessary to check whether it is safe and reliable, whether the electrical circuit is damaged, and if the problem is found, it must be repaired before use.
10. When carrying the pot, several people should cooperate with each other and keep it steady. When changing the sandpaper, the screws must be tightened, and the electrical switch should be handled by a special person to avoid accidents.
11. Vulcanized nylon conveyor belt, cold and long belts are not allowed to travel back and forth. It is not allowed to sit, lie or lean on finished products or semi-finished products. For the transfer and newly assigned employees, they must be familiar with the safe operation skills of this position.

Maintenance Of Automatic Vulcanizing Machine:

1. 68# hydraulic oil for pumping station. After 40 hours of trial, the newly purchased automatic vulcanizing machine must open the fuel tank cover, release the hydraulic oil, and wipe the fuel tank cleanly. The purpose of the copper mesh is to filter the oil and re-add it to the fuel tank. Clean every three months, no more than half a year. Unscrew the oil screw, release the oil, clean and dry the oil tank, filter out the impurities in the oil, and then re-inject the oil tank. Hydraulic oil needs to be replaced once a year.
2. After using the vulcanizer cylinder seal for a certain period of time, if excessive oil is found, it should be replaced. When replacing the seal of the vulcanizer, raise the piston to the highest point, use the wooden stick to support the lower plate, loosen the bolts of the connecting plate and the piston, loosen the upper end of the quick cylinder, and put the upper end into the fuel tank (ie, the oil is lowered when descending) Fuel tank); Rotate to the manual position, press the M2 button to lower the piston to the lowest point and replace it with a new one. Then press the M3 button to slowly raise the piston so that the seal is fully loaded correctly.
3. The vulcanizer electrical system should always check whether the connecting screws are loose. When copper black spots are generated on the contactor contacts, they must be removed with fine sandpaper. The working state of the electric heating tube can be reflected by the corresponding ammeter at any time. After three days of use, all screws should be re-firmed. Red insulation must be ensured when replacing the heating tube.

Main Parameters for Other Machines:

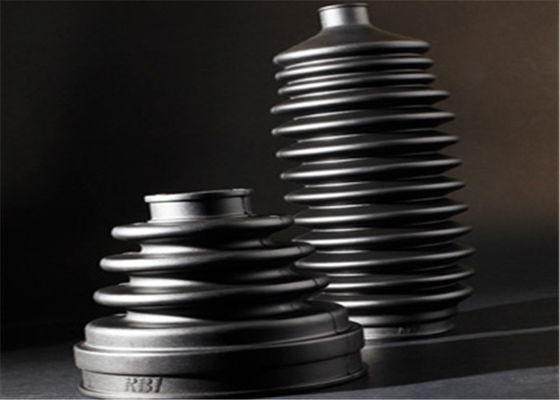

Finished Product:
