Quality - Oriented, Offering Customer with Optimum Productivity and Profitability.
Product Details:
Payment & Shipping Terms:
|
| Clamp Force: | 400 Ton | Injection Volume: | 10000CC |
|---|---|---|---|
| Injection Pressure: | 2000kgf/sqm | Plate Size: | 700x700mm |
| Plunger Stroke: | 500mm | Heating Plates Distance: | 600mm |
| Tie Bar Distance: | 820*395mm | Max Operating Pressure: | 20MPa |
| Machine Weight: | 11.5 Ton | Machine Dimeansion: | 5160x2150x3260mm |
| High Light: | automatic rubber moulding machine,rubber transfer moulding machine |
||
Drilling Equioment Rubber Cylinder Injection Machine 700 x 700 mm Heating Plate Size
Rubber Injection Machine Structure Analysis:
Rubber injection machine In some special cases, the customer's injection molding machine may encounter a small mold or product and a large injection volume, or a large mold volume requires a small injection volume. In this case, the manufacturer presets Good specifications may not meet customer needs, and must be so-called "size matching", that is, "large wall small shot" or "small wall large shot", large wall small shot refers to the original standard clamping unit with a small Injection screw, on the contrary, the small wall big shot refers to the original standard clamping unit with a larger injection screw, of course, there may be several stages of clamping and injection.
In the practical application of rubber injection machines, in order to shorten the molding cycle and increase the output per unit time, thereby reducing costs and improving competitiveness, they like to buy the so-called "high-speed machine" and "fast machine". The general improvement methods are the following :
The improvement of the rubber injection machine has increased the work efficiency, but it has increased the investment cost and operating cost. Before investing, do a good investment evaluation and create the highest benefit with the most suitable model.
Hydraulic Equipment Characteristics:
| Model | Unit | 300HI-FL | 400HI-FL | 550HI-FL | 600HI-FL | 800HI-FL | 1000HI-FL |
| Clamping Force | Ton | 300 | 400 | 550 | 600 | 800 | 1000 |
| Injection Capacity | cc | 3000 | 10000 | 10000(12000) | 6000 | 8000 | 10000 |
| Injection pressure | kgf/cm² | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Operate table size | mm | 700*700 | 700*700 | 700*1500 | 850*850 | 1000*1000 | 1200*1200 |
| Min. Mold Thickness | mm | 200 | 200 | 510 | 200 | 250 | 250 |
| Plunger stroke | mm | 400 | 500 | 700 | 500 | 500 | 500 |
| Distance of Thermo-plate | mm | 600 | 600 | 960 | 700 | 750 | 750 |
| Distance of Tie bar | mm | 820*395 | 820*395 | 820*640 | 970*500 | 1240*590 | 1340*800 |
| Die sinking type | 2RT-3RT-4RT-Upper ejector-Bottom ejector | ||||||
| Max. Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 15(11kw) | 15(11kw) | 30/7.5 (22kw/5.5kw) |
20(15kw) | 20(15kw) | 25(18.5kw) |
| Heater Power | Kw | 24 | 24 | 45 | 29.75 | 35 | 42 |
| Total Power | Kw | 39 | 39 | 80 | 48.75 | 54 | 64.5 |
| Gross weight | Ton | 9.5 | 10.5 | 25 | 14.5 | 18.5 | 22 |
| Dimension(L*W*H) | mm | 3500*2600 *2700 |
3600*2600 *2700 |
5200*2600 *3500 |
3800*2800 *2800 |
4000*3050 *2900 |
4150*3250 *3200 |

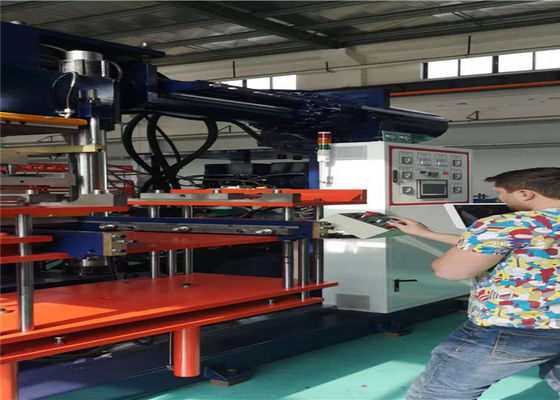

Machine Reference Images:
If you want machine video and see how our machine produce silicone rubber products ,
please send enquiry to us!
