400 T Vacuum Compression Molding Machine With Hydraulic System

Large Image : 400 T Vacuum Compression Molding Machine With Hydraulic System

Product Details:

Place of Origin:	China
Brand Name:	Juchuan
Certification:	SGS CE
Model Number:	JC-400VF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	N/A
Delivery Time:	45 days
Supply Ability:	500sets one year

Contact Now

Detailed Product Description

Clamp Force:	400 Ton	Upper Plate Size:	800mm*800mm
Lower Plate Size:	850mm*850mm	Tie Bar Distance:	940mm*450mm
Die Sinking Type:	2RT-3RT-4RT-Track	Gross Weight:	18Ton
High Light:	rubber compression machine , rubber compression molding machine

400 ton silicone cake mold making machine, silicone compression molding machine with vacuum cover

Specific Characteristic:

Vacuum Capability: It is capable of being high degree of vacuum. A standard vacuum method is used to make consistent high quality products.
Mold Opening Design: A patent is granted for a new type rail mold opening. The opening angle is up to 90 degrees. It is very convenient for operation. Another feature of the new rail mold opening is that there is no need to remove the base of the rail mold opening while replacing molds. It promotes the work efficiency and safety.
Mold Loading / Unloading Design: Incorporate a special design into the mechanism of mold loading / unloading. It is durable, quiet. speedy and stale.
Hydraulic System Design: The system employs both high and low pressure pumps and is able to close both presses simultaneously. The system is quiet, reliable with minimum maintenance required.
Alignment: Two speeds of mold calibration are provided for users to choose form, fast and slow. It makes the calibration more safe and more accurate.

2RT Machine motion flow:

Setup the mold (initial status)
Supply the material and start the process(close the mold)
Load the mold
The main ram goes up to the predetermined position ready for entering a state of vacuum
Lower the vacuum mask. At the same time, suck out the air until a state of vacuum is reached.
The main ram goes up. Increase the pressure to expel bubbles out.
After the state of vacuum exist mo more, lift the vacuum hood and curing.
After curing, lower the main ram.
Unload the mold, open the mold.
Take out the final product and put new material in.

Our Services:

Free technology training: you can come for inspection and training for free.
Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
After-sales service:We will supply the free repairment on thilfs machine for one year,but will suppli the maintenance lifetime.(the service is only for natural damage)
Online remote control for software problems, whatspp or wechat for video checking.

400Ton parameter:

Model	Unit	400VF
Clamping Force	Ton	400
Upper Platen Size	mm	800*800
Lower Platen Size	mm	850*850
Plunger stroke	mm	350
Distance of Thermo-plate	mm	350
Distance of Tie bar	mm	940*450
Die sinking type	2RT-3RT-4RT-Track
Max Operating Pressure	Mpa	20
Motor Power	hp	15*2
Electric Heating Power	Kw	26.4*2
Vacuum Pump Power	Kw	3*2
Total Power	Kw	84.8
Gross weight	Ton	18
Dimension	mm	L3650W3050H2900

The Other Main Parameter:

Model	Unit	100VF	200VF	250VF	300VF
Clamping Force	Ton	100	200	250	300
Upper Platen Size	mm	380*400	510*510	600*600	680*680
Lower Platen Size	mm	400*460	550*560	650*600	700*800
Plunger stroke	mm	200	250	250	300
Distance of Thermo-plate	mm	200	250	250	300
Distance of Tie bar	mm	490*230	640*310	745*310	785*380
Die sinking type	2RT-3RT-4RT-Track
Max Operating Pressure	Mpa	20	20	20	20
Motor Power	hp	7.5*2	10*2	10*2	10*2
Electric Heating Power	Kw	7.2*2	13.5*2	15.3*2	24*2
Vacuum Pump Power	Kw	3	3	3*2	3*2
Total Power	Kw	28.4	45	51.6	69
Gross weight	Ton	5	7.8	11	15.45
Dimension	mm	L2500W2150H2080	L2930W2500H2350	L3190W2930H2495	L3360W2970H2850

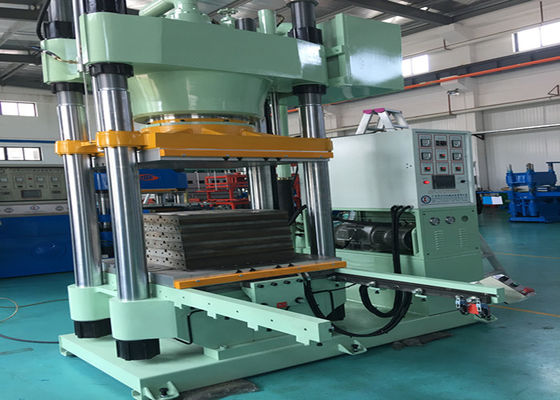

Product Show:
400 T Vacuum Compression Molding Machine With Hydraulic System 0

Finished Product:
