Product Details:
Payment & Shipping Terms:
|
| Product Name: | JC-400HI-FL | Clamp Force: | 400 Ton |
|---|---|---|---|
| Min Mould Thichness: | 200mm | Machine Dimensions: | L3600*W2600*H2700mm |
| Pressing Mode: | Hydraulic Pressing | Plunger Stroke: | 400mm |
| Max. Operating Pressure: | 20Mpa | Distance Of Tie Bar: | 820*395mm |
| Injection Capacity: | 4000cc | ||
| High Light: | rubber moulding press machine,silicone bracelet maker machine |
||
400 Ton Clamping Force Making Mould Horizontal Type Space-Efficient Hydraulic Injection Machine
The advantages of horizontal injection machine:
It is characterized by the centerline of the injection assembly concentric or consistent with the centerline of the clamping assembly, and parallel to the installation of the ground.
Its advantage is low center of gravity, stable work, mold installation, operation and maintenance are more convenient, open a large mold, accounting for a small space.
Machine Main Features:
1. Equiped with infrared camera and automatic alarm function in machine safety controlling.
2. Unique two stage material injecting mechanism for better de-gasing purpose.
3. Improvement deign of injection molding machine seat that able to enhance molded part quality and cosmectic.
4. Anti-collision molding system prevent molding damageoccurringfrommisalignment ( Patented).
5. Equiped with silicone rubber device.
6. Suitable for all kinds of rubber with hardness less than 80 shore A, silicone rubber parts, fire retardant parts etc
Technical Parameters of 400 Ton
|
||||||||||||||||||||||||||||||||||||||||||||||||
The other parameter:
| Model | Unit | 200HI-FL | 250HI-FL | 550HI-FL | 600HI-FL |
| Clamping Force | Ton | 200 | 250 | 550 | 600 |
| Injection Capacity | cc | 2000 | 2500 | 10000(12000) | 6000 |
| Injection pressure | kgf/cm² | 2000 | 2000 | 2000 | 2000 |
| Operate table size | mm | 550*550 | 600*700 | 700*1500 | 850*850 |
| Min. Mold Thickness | mm | 100 | 100 | 510 | 200 |
| Plunger stroke | mm | 500 | 500 | 700 | 500 |
| Distance of Thermo-plate | mm | 600 | 600 | 960 | 700 |
| Distance of Tie bar | mm | 640*310 | 705*400 | 820*640 | 970*500 |
| Die sinking type | 2RT-3RT-4RT-Upper ejector-Bottom ejector | ||||
| Max. Operating Pressure | Mpa | 20 | 20 | 20 | 20 |
| Motor Power | hp | 15(11kw) | 15(11kw) | 30/7.5(22kw/5.5kw) | 20(15kw) |
| Heater Power | Kw | 15.3 | 18 | 45 | 29.75 |
| Total Power | Kw | 30.3 | 33 | 80 | 48.75 |
| Gross weight | Ton | 7.3 | 8 | 25 | 14.5 |
| Dimension | mm | L3400*W2400*H2600 | L3400*W2500*H2650 | L5200*W2600*H3500 | L3800*W2800*H2800 |

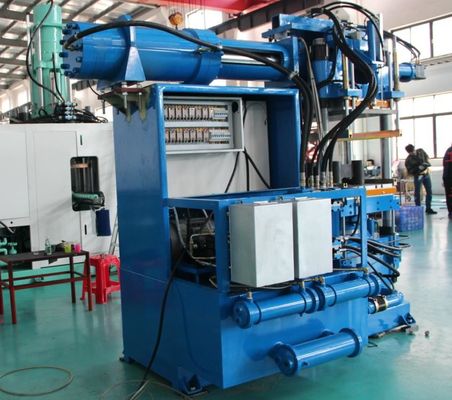

Product Show:
