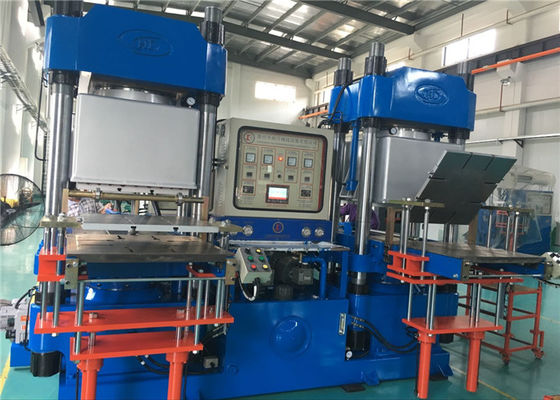

300 Ton Rubber Vacuum Compression Molding Machine L3360 * W2970 * H2850 Mm

Large Image : 300 Ton Rubber Vacuum Compression Molding Machine L3360 * W2970 * H2850 Mm

Product Details:

Place of Origin:	China
Brand Name:	Juchuan
Certification:	SGS CE
Model Number:	JC-300VF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	N/A
Delivery Time:	45 days
Supply Ability:	500sets one year

Contact Now

Detailed Product Description

Clamp Force:	300 Ton	Upper Plate Size:	680mm*680
Lower Plate Size:	700mm*800mm	Heating Plate Size:	300mm
Dimension:	L3360W2970H2850 Mm	Max Operating Pressure:	20Mpa
High Light:	rubber compression moulding machine , rubber compression molding machine

300 Ton Complicated Parts Rubber Bonded Metal Products Making Vacuum Compression Molding Machine

Machine Characteristic:

1. Vacuum capacity: able to achieve high degree of vacuum. A standard vacuum method is used to make consistently high quality products.

2. Open the mold design: a new type of patent guide rail. Special design can be 90 degrees open angle, easy to operate.

3. Mold handling design: in the mold handling agencies to join a special design. It is durable and quiet. Fast and outdated.

4. Hydraulic System Design: The system uses high-pressure pump and low-pressure pump, which can shut down two presses at the same time. The system isless noise, stable performance, long service life.

5. Alignment: provide two different mold calibration speed: fast and slow, the user can choose to use according to the actual situation. It makes calibration more secure and accurate.

2RT Machine motion flow:

Setup the mold (initial status)
Supply the material and start the process(close the mold)
Load the mold
The main ram goes up to the predetermined position ready for entering a state of vacuum
Lower the vacuum mask. At the same time, suck out the air until a state of vacuum is reached.
The main ram goes up. Increase the pressure to expel bubbles out.
After the state of vacuum exist mo more, lift the vacuum hood and curing.
After curing, lower the main ram.
Unload the mold, open the mold.
Take out the final product and put new material in.

Our Services:

Free technology training: you can come for inspection and training for free.
Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
After-sales service:We will supply the free repairment on thilfs machine for one year,but will suppli the maintenance lifetime.(the service is only for natural damage)
Online remote control for software problems, whatspp or wechat for video checking.

Main Paremeter:

Model	Unit	200VF	250VF	300VF	400VF	500VF
Clamping Force	Ton	200	250	300	400	500
Upper Platen Size	mm	510*510	600*600	680*680	800*800	950*950
Lower Platen Size	mm	550*560	650*600	700*800	850*850	1000*1000
Plunger stroke	mm	250	250	300	350	350
Distance of Thermo - plate	mm	250	250	300	350	350
Distance of Tie bar	mm	640*310	745*310	785*380	940*450	1105*475
Die sinking type	2RT-3RT-4RT-Track
Max Operating Pressure	Mpa	20	20	20	20	20
Motor Power	hp	10*2	10*2	10*2	15*2	15
Electric Heating Power	Kw	13.5*2	15.3*2	24*2	26.4*2	36
Vacuum Pump Power	Kw	3	3*2	3*2	3*2	4
Total Power	Kw	45	51.6	69	84.8	49
Gross weight	Ton	7.8	11	15.45	18	14.5
Dimension	mm	293025002350	319029302495	336029702850	365030502900	146036003150
