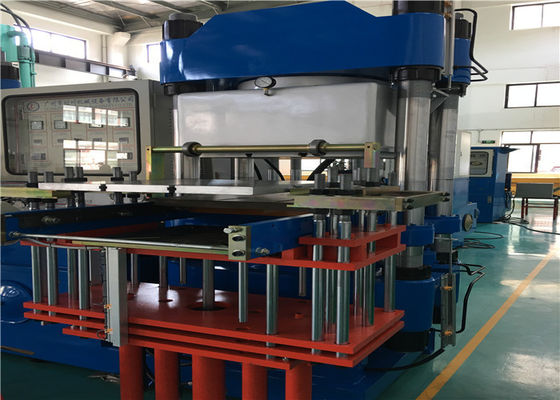

200 Ton Plate Rubber Vulcanizing Press With Vaccum Compression Cover Easy Air Exhausting

200 Ton Plate Vulcanizing Machine with Vaccum Compression Cover Easy Air Exhausting​

Why The Vacuum Compression Molding Machine Leak Pressure?
The leakage pressure of the vacuum vulcanizer is definitely a material deflation. There are two kinds of conditions for material deflation. One is that your vacuum chamber itself has a leak. When the vacuum is increased, it will leak very badly. The other is that the substance you put in the vacuum chamber is deflated, and the venting is that when the vacuum is increased, some substances in the vacuum chamber will vaporize.


Vacuum Compression Molding Machine Workflow:

1. mold (original state)
2. cutting, starting (closing)
3. into the mold
4. the master cylinder rises to the vacuum position
5. the vacuum cover is lowered while vacuuming
6. The master cylinder rises and pressurizes, and the exhaust gas is simultaneously evacuated.
7. After the vacuum damage is over, the vacuum cover rises and the sulfur is continuously added.
8. the addition of sulfur is completed, the master cylinder is lowered
9. model, touch
10. take the finished product, set the raw materials

Main Features of Vacuum Compression Molding Machine:

1. PLC computer control, simple operation, low failure rate, easy maintenance
2. Storage system: automatic temperature control device, shortening the time of sulfurization, increasing the output, saving the chemical amount and reducing the cost. After the storage is completed, the nozzle will automatically leave, no dead material will be blocked, and the outlet will be blocked.
3. Injection system: Adopting direct pressure injection (three-stage pressure, four-stage flow control) is stable and fast. It is suitable for any hardness material. The injection quantity is controlled by the potential meter. The injection quantity is accurate and stable, suitable for mass production.
4. Applicable to all kinds of natural rubber, oil, heat, acid and recyclable rubber, etc.
5. The structure of the fuselage determines the service life and long stability of the machine. With AUTO-CAD 3D mechanical analysis aided design, one-piece casting results in a body with high rigidity, precise structure and long service life.
6. The body is made of ductile iron FCD50 after artificial aging passivation, with high tensile strength and toughness
7. High-precision machining of parts determines the accuracy of the machine
8. All kinds of machined parts of the machine are processed by professional manufacturers with high-performance machine tools to ensure the accuracy of the drawing design.
9. The hot plate adopts deep hole processing, electric heating tube heating, and temperature segmentation control, so that the temperature is evenly distributed throughout the hot plate to ensure the product qualification rate, and the error reaches the standard of ±3 °C.
10. The friction parts such as hot plate and moving template are treated by surface nitriding heat treatment after careful processing, which is durable.

Main parameter:






Product Show:


Finished Product:
