Quality - Oriented, Offering Customer with Optimum Productivity and Profitability.
Product Details:
Payment & Shipping Terms:
|
| Clamp Force: | 200 Ton | Upper Platen Size: | 510*510mm |
|---|---|---|---|
| Lower Platen Size: | 550*560mm | Plunger Stroke: | 250mm |
| Heating Plates Distance: | 250mm | Motor Capacity: | 10*2HP(7.5W*2) |
| Color: | Blue And Orange | ||
| High Light: | rubber compression machine,rubber compression molding machine |
||

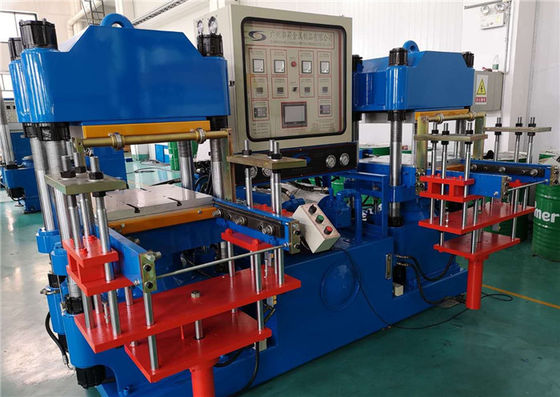

200 Ton Clamp Force AB Twin independent oil pump 4RT Silicone Compression Molding Machine
How does vacuum compression molding machine works:
Vacuum forming is a thermoplastic plastic plate, sheet is fixed on the mould, with radiation heater heated to softening temperature, and then the die with the plate by using a vacuum pump (sheet material) between the air pump to make the plate (sheet material) parison according to mould contour forming, cooling stereotypes after products use compressed air to blow out of the mould and demoulding.
Machine Charateristic:
Choose the right molding machine according to different plastic products. A good molding products, can achieve the effect of half work half. Improving the quality of products also improves the production efficiency, and recently improves the production capacity, that is to say, can create more profits for the enterprise. Therefore, the choice of a good plastic molding machine equipment is crucial.
Machine Technical Parameters:
| Model | Unit | JC-200VF |
| Clamping Force | Ton | 200 |
| Upper Platen Size | mm | 510*510 |
| Lower Platen Size | mm | 550*560 |
| Plunger stroke | mm | 250 |
| Distance of Thermo-plate | mm | 250 |
| Distance of Tie bar | mm | 640*310 |
| Die sinking type | 2RT-3RT-4RT-Track | |
| Max Operating Pressure | Mpa | 20 |
| Motor Power | hp | 10*2(7.5KW*2) |
| Electric Heating Power | Kw | 13.5*2 |
| Vacuum Pump Power | Kw | 3*2 |
| Total Power | Kw | 45 |
| Gross weight | Ton | 7.8 |
| Dimension | mm | L2930*W2500*H2350 |
Other Vacuum Compression Machine Parameters:
| Model | Unit | 100VF | 250VF | 300VF | ||
| Clamping Force | Ton | 100 | 250 | 300 | ||
| Upper Platen Size | mm | 380*400 | 600*600 | 680*680 | ||
| Lower Platen Size | mm | 400*460 | 650*600 | 700*800 | ||
| Plunger stroke | mm | 200 | 250 | 300 | ||
|
Distance of Thermo - plate |
mm | 200 | 250 | 300 | ||
| Distance of Tie bar | mm | 490*230 | 745*310 | 785*380 | ||
| Die sinking type | 2RT-3RT-4RT-Track | |||||
|
Max Operating Pressure |
Mpa | 20 | 20 | 20 | ||
| Motor Power | hp | 7.5*2 | 10*2 | 10*2 | ||
|
Electric Heating Power |
Kw | 5.5*2 | 7.5*2 | 7.5*2 | ||
|
Vacuum Pump Power |
Kw | 3 | 3*2 | 3*2 | ||
| Total Power | Kw | 28.4 | 51.6 | 69 | ||
| Gross weight | Ton | 5 | 11 | 15.45 | ||
| Dimension | mm | 2500*2150*2080 | 3190*2930*2495 | 3360*2970*2850 | ||
Reference Images:
