High - efficiency Vacuum Compression Molding Machine / Silicone Kitchen Baking Mats Molding Machine

China High - efficiency Vacuum Compression Molding Machine / Silicone Kitchen Baking Mats Molding Machine supplier
High - efficiency Vacuum Compression Molding Machine / Silicone Kitchen Baking Mats Molding Machine supplier High - efficiency Vacuum Compression Molding Machine / Silicone Kitchen Baking Mats Molding Machine supplier High - efficiency Vacuum Compression Molding Machine / Silicone Kitchen Baking Mats Molding Machine supplier High - efficiency Vacuum Compression Molding Machine / Silicone Kitchen Baking Mats Molding Machine supplier High - efficiency Vacuum Compression Molding Machine / Silicone Kitchen Baking Mats Molding Machine supplier High - efficiency Vacuum Compression Molding Machine / Silicone Kitchen Baking Mats Molding Machine supplier

Large Image :  High - efficiency Vacuum Compression Molding Machine / Silicone Kitchen Baking Mats Molding Machine

Product Details:

Place of Origin: Guangdong China
Brand Name: Juchuan
Certification: LFGB CE SGS REACH
Model Number: JC-200VF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 38850-48850 set
Packaging Details: N/A
Delivery Time: 45 days
Supply Ability: 500sets per year
Contact Now
Detailed Product Description
Machine Apply: Silicoen Kitchen Ware Machine Advantages: Vacuum Compression Molding
Solenoid Valve: Taiwan Hytek Control System: Japan Mitsubish
Oil Pump: Taiwan Yuken Main Motor: Taiwan Tatung

Food Grade Silicone Baking Mats Molding Machine Vacuum Compression Machine




Main Parts Of Machine

NO. ITEM BRAND
1 SOLENOID VALVE TAIWAN HYTEK
2 CONTROL SYSTEM(PLC) JAPAN MITSUBISHI
3 SOLID STATE RELAY(SSR) CHINA SONON
4 OIL PUMP JAPAN YUKEN
5 HUMAN MACHINE INTERFACE(HMI) TAIWAN PANELMASTER
6 MOLD BASE CASTING DUCTILE CAST IRON(QT500-07)
7 MAIN CYLINDER ONE PIECE CAST MOLDING, DUCTILE CAST IRON(QT500-07)
8 MAIN MOTOR TAIWAN TATUNG
9 WITH PLC CONTACT PROTECTION DEVICE





Advanced Vacuum Compression Molding Machine Technology:



  1. Double (single) seat vacuum vulcanizer - 4 seconds pre-vacuum to -600mmHg, especially suitable for the production of complex structures
  2. It can solve the problems of bubbles and fillers in ordinary flat forming machines, and greatly improve the yield.
  3. There is a single-seat form and a double-seat form, there is a fitting product form, and there is a clamping mechanism. The user can choose according to the process requirements.
  4. Manual, semi-automatic operation
  5. The control system uses a well-known brand computer with multiple selection parameters and program memory mode.
  6. The vacuum pump adopts well-known brands, with high pumping efficiency, low noise and reliable operation.
  7. The number of deflation, deflation time and vulcanization time can be set, easy to operate.
  8. Lightning exhaust, saving time
  9. The clamping structure adopts finite structure analysis, the system stiffness is good, and the molded products are guaranteed to be small in edge and high in quality.
  10. The mechanism action adopts fast and slow combination and reliable operation.

Application Range:

  1. Applied to various rubber molded products:
  • High-efficiency double-pump hydraulic system
  • Lower-out mold-in device
  • One-layer demoulding device
  • Zhongde vacuum system
  • Siemens controller
  1. Manual clamping / automatic clamping device
  2. 3RT / 4RT multilayer release device
  3. Track opening device
  4. Other customized demoulding structure

Main Features of kitchen bakingmats Injection Molding Machine:

  1. One person can operate multiple machines, workers have low labor intensity, all-round computer control system, human-computer interaction can only operate.
  2. Vacuum pump adopts international famous brand, high pumping efficiency, low noise, safe and reliable operation.
  3. Safe and non-returned design, equipped with Japanese high-tech infrared safety eye.

Main Technical Parameters:

Model Unit 300VF
Clamping Force Ton 300
Upper Platen Size mm 680*680
Lower Platen Size mm 700*800
Plunger stroke mm 300
Distance of Thermo-plate mm 300
Distance of Tie bar mm 785*380
Die sinking type 2RT-3RT-4RT-Track
Max Operating Pressure Mpa 20
Motor Power hp 10*2
Electric Heating Power Kw 24*2
Vacuum Pump Power Kw 3*2
Total Power Kw 69
Gross weight Ton 15.45
Dimension mm L3360*W2970*H2850

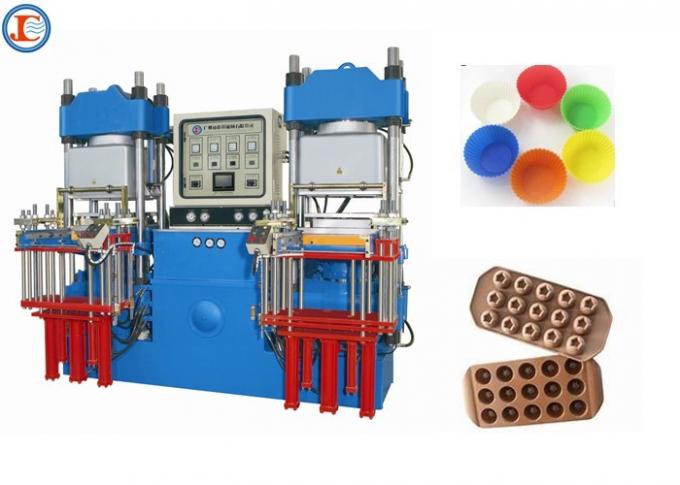

Reference Images:

High - efficiency Vacuum Compression Molding Machine / Silicone Kitchen Baking Mats Molding Machine
